33/50 kW Three Phase Inverter

Single Phase Solar GTI — INV(EU)-EGT-01 Series (1.5kW–6kW)

Residential grid-tied inverter range spanning 1.5kW to 6kW capacities (10 models)
Graphic LCD display with WiFi standard and RS485 optional communication
Max PV input voltage of 550V with start-up voltage of 65–70V
Nominal PV input voltage of 450V, MPPT voltage range of 100–500V
Single independent MPPT input with max operating current up to 22A (30A DC short-circuit)
Nominal AC output power from 1500W to 6000W, max apparent power up to 6600VA
Nominal AC voltage of 220/230V with wide voltage range of 140–300V
IP65 degree of protection per IEC 60529, smart cooling method
Achieves up to 97.8% max efficiency and 99.90% MPPT efficiency
THD below 1.5% at rated power, adjustable power factor of ±0.8

Full protection suite: grid monitoring, DC reverse polarity, short-circuit, leakage current, surge, and anti-islanding protection
Recommended max PV input power from 2250Wp to 7800Wp, depending on model
Compliant with CE, EN/IEC 61000, IEC 62109, BIS, IEC 60068-2, and VDE-AR-N 4105 standards
Transformerless topology with wall-mounting bracket design
MC4-compatible DC connectors, plug-and-play AC connection
Operating ambient temperature range of -25°C to 60°C, humidity tolerance of 0–95%
Compact dimensions (315x300x108mm for smaller units), weighing 5–8kg
Grid frequency support of 50Hz/45–55Hz, 60Hz/55–65Hz
Best suited for residential rooftops and small home solar installations.

Residential Rooftops

Shops & Offices

Farmhouses & Villas

Net-Metering Systems

CERTIFIED SAFETY

GRID READY

BIS CERTIFIED

CE & EMC COMPLIANT

Technical Highlights

(Refer to datasheet for detailed specifications.)

Key Features

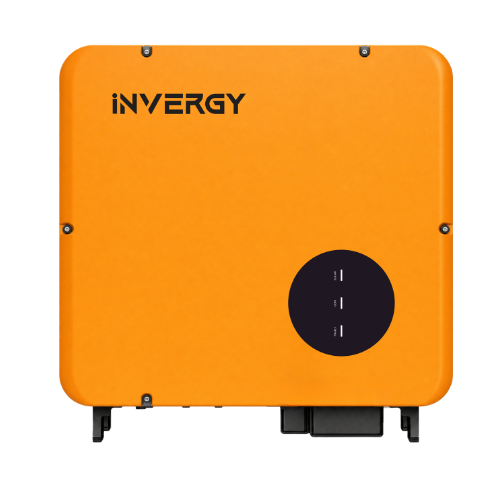

Available in 33 kW and 50 kW three-phase on-grid inverter models.
Maximum PV array power of 49.5 kWp for INV 33 TP and 75 kWp for INV 50 TP.
Supports 150% PV array oversizing for higher energy yield potential.
Maximum DC input voltage of 1100 V.
Wide MPP operating voltage range of 200–1000 V.
Rated DC input voltage of 630 V.
Three independent MPPT inputs for INV 33 TP and five for INV 50 TP.
Two PV strings per MPPT input, as specified in the technical table.
Rated AC active output power of 33 kW and 50 kW, respectively.
Maximum apparent output power of 33 kVA for INV 33 TP and 55 kVA for INV 50 TP.
Maximum inverter efficiency of 98.6% and European efficiency of 98.3%.
Adjustable power factor from 0.8 leading to 0.8 lagging.
Total harmonic distortion below 3% at rated output.
IP66-rated enclosure for outdoor installations.
Integrated DC switch for convenient system isolation.
Type II surge protection with additional electrical protection functions.
Ground fault monitoring, grid monitoring and anti-islanding protection.
Active cooling system for temperature management.
RS485 and WiFi communication interfaces, with LAN and 4G listed as optional.
Compact wall-mounted design with plug-in DC connectors and LED status indicators.
Compact wall-mounted design for easy installation, with plug-in DC connectors and LED status indicators.
Quick setup and commissioning via app, with ShadeSol shadow management for improved performance under partial shading conditions.
