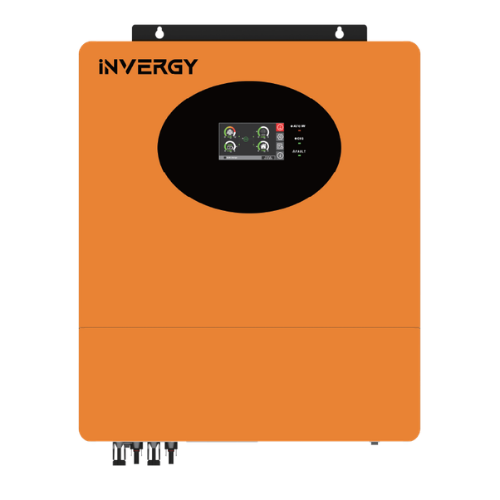

Hybrid OGH MAX PLUS Single Phase

Hybrid-OGH Series — Single Phase (1.5kW–6.2kW)

Single-phase hybrid inverter series across 6 models (1.5kW to 6.2kW)
Battery voltage options of 12VDC, 24VDC, and 48VDC depending on model
AC input voltage of 230VAC with selectable range: 170–280VAC (PCs) / 90–280VAC (home appliances)
Output power ranging from 1500VA to 6200VA, with dual AC output configurations
Surge power capacity from 3000VA up to 12,400VA
Peak efficiency of 93% with pure sine wave output
Fast transfer time: 10ms for computers, 20ms for home appliances
MPPT solar charging with an array power support up to 6500W
Maximum PV array open circuit voltage up to 500VDC
MPPT operating voltage range as wide as 30–450VDC (min. 60–100VDC without battery)
Max solar charge current up to 100A, max AC charge current up to 100A

Max total charge current up to 120A, depending on model
Floating charge voltage precision-tuned per battery voltage class (13.5V/27V/54V)
Built-in feed-in grid function and BMS communication port
Battery equalization function to optimize performance and extend the lifecycle
Built-in WiFi with app-based monitoring and OTA firmware upgrades
Communication via RS232/RS485(BMS)/WiFi
Operating humidity range of 5–95% RH (non-condensing)
Operating temperature of -10°C to 50°C, storage up to 60°C
Compact dimensions from 357x288x90mm to 435x300x115mm, weighing 6.6–10.4kg
Perfect for homes seeking solar-plus-battery backup with grid feed-in flexibility.

Applications

Residential Rooftops

Shops & Offices

Farmhouses & Villas

Net-Metering Systems

CERTIFIED SAFETY

GRID READY

BIS CERTIFIED

CE & EMC COMPLIANT

Technical Highlights

(Refer to datasheet for detailed specifications.)

Key Features

Single-phase 6.0 kW hybrid inverter with a 48 VDC battery system.
Supports lithium and lead-acid battery technologies.
Battery equalization function designed to extend battery life.
Built-in MPPT solar charger for efficient PV energy harvesting.
Maximum PV array open-circuit voltage of 500 VDC.
Wide MPPT operating voltage range of 60–450 VDC.
Maximum PV array power of 2 × 4000 W.
Two MPPT trackers for flexible solar array configuration.
Maximum PV input current of 2 × 16 A.
Maximum solar charging current of 120 A.
Maximum AC charging current of 100 A.
Maximum combined charging current of 120 A.
Peak inverter efficiency of 93%.
Surge power capacity of 12,000 VA.
Fast transfer time of 10 ms for personal computers and 20 ms for home appliances.
Standard off-grid operation with optional on-grid functionality.
Dual AC outputs with intelligent load management.
IP54-rated enclosure with AC overcurrent, overvoltage and over-temperature protection.
Standard RS232, USB, CAN and RS485 communication interfaces, with optional WiFi.
Optional parallel operation supporting up to six inverter units.
