Off-Grid Inverter – ECO Series

Product Details

Residential Series – Pure Sine Wave Inverters

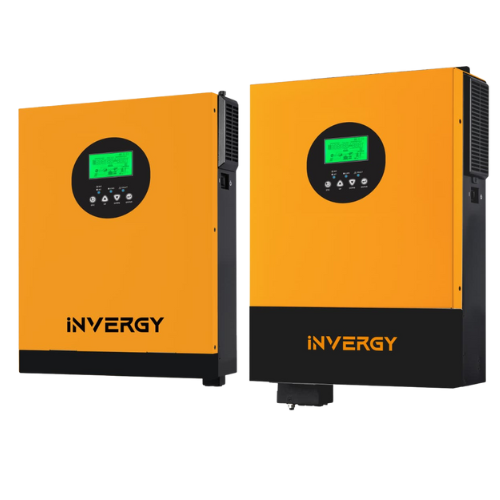

The Invergy ECO Series off-grid solar inverters are designed for residential use, offering reliable power backup, solar charging, and battery optimization features. These inverters combine smart performance with advanced safety and flexibility.

Key Features

• Pure Sine Wave Output: Delivers stable and clean power for sensitive electronics.

• Built-in Anti-Dust Kit: Protection for extended durability in Indian environments.

• MPPT Solar Charging: Advanced solar charging with MPPT technology for better efficiency.

• Wide PV Input Range: Accepts PV voltage from 30V to 450V, depending on the model.

• Battery Equalization Function: Extends battery life and improves performance.

• Maximum Charging Current: Up to 100A.

• BMS Port: Reserved communication port for battery management system integration.

• Optional Wi-Fi Monitoring: For remote performance tracking.

Performance & Protection

• Peak Efficiency: 93%

• Surge Power: Up to 10,000VA

• Waveform: Pure sine wave

• Transfer Time: 10ms (PC) / 20ms (Home Appliances)

• Protection: Overcharge, short circuit, thermal, and more

Environmental & Physical

• Humidity: 5% – 95% (non-condensing)

• Operating Temperature: -10°C to 50°C

• Storage Temperature: -15°C to 60°C

• Weight: Ranges from 6.5 kg to 10 kg

• Size: Compact wall-mountable design (e.g., 120 × 300 × 440 mm for 5kW)
