INV 5/6/8/10/12/15/18/20/25 TP
Patented Cooling Design
Unique H6 Topology Prevents Leakage Current
Wide Range Of AC Grid Voltage Up To 290 Volt
AFCI (Optional)
Within 24 Hours Replacement, 365 Days Up-time
IP66
Product Details

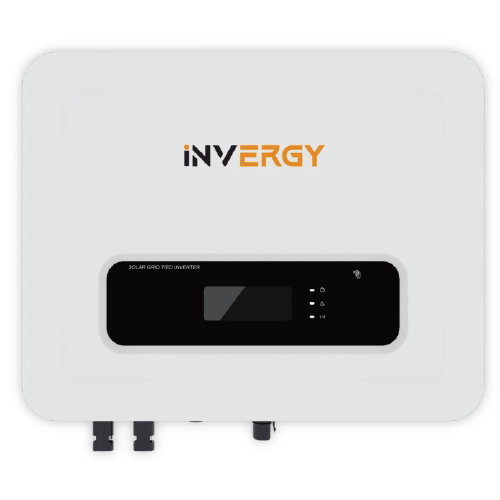

The Invergy INV TP Series Three Phase On-Grid Solar Inverter is a high-performance inverter solution optimized for residential solar systems. Offering models from 5 kW to 25 kW, this series supports diverse energy needs with superior efficiency, robust safety, and a durable, eco-friendly design.
Key Features
- Smart Cooling System: Built with advanced smart cooling, this inverter prevents overheating, ensuring consistent performance and extended lifespan.
- H6 Topology for Safety: The H6 topology reduces leakage currents, enhancing safety. Optional Arc-Fault Circuit Interrupter (AFCI) protection mitigates fire risks by interrupting DC circuit arcs.
- Broad AC Voltage Range: With an AC voltage range up to 490V, this inverter easily adapts to fluctuations, maintaining stable output in diverse grid environments.
- Top Efficiency and MPPT Technology: Achieving up to 99.5% efficiency and 99.9% MPPT (Maximum Power Point Tracking) efficiency, this series ensures maximum energy harvest, supporting significant savings.
- Comprehensive Safety Protections: Features anti-islanding, overvoltage protection, short-circuit, and surge protection, ensuring safety in residential use. Compliance with CE, BIS, and IEC standards guarantees compatibility and security.
- Easy Monitoring and Connectivity: Equipped with an LCD display and Wi-Fi, RS485, and optional GPRS connectivity, users can easily monitor and control the system remotely.
- Durable, Weather-Resistant: Rated IP65, this inverter can operate from -25℃ to 60℃, making it resilient against environmental conditions and ideal for outdoor use.
- Low Power Consumption and Quiet Operation: With night power consumption under 0.2W and noise levels below 30 dB, this eco-friendly inverter is both energy-efficient and quiet, suitable for residential areas.
- Extended Warranty and Support: Backed by an 8-year warranty and 24-hour replacement policy, Invergy provides users with reliable support.
Technical Specifications
- Nominal AC Output Power: 5 kW – 25 kW (depending on model)
- Max. AC Output Current: 7.25A – 36.23A
- AC Voltage Range: 280V – 490V
- Cooling Method: Smart cooling
- Relative Humidity: 0-95% (non-condensing)
- Night Power Consumption: <0.2W
- Dimensions: Compact, wall-mountable, weighing 16 kg – 23 kg depending on model
