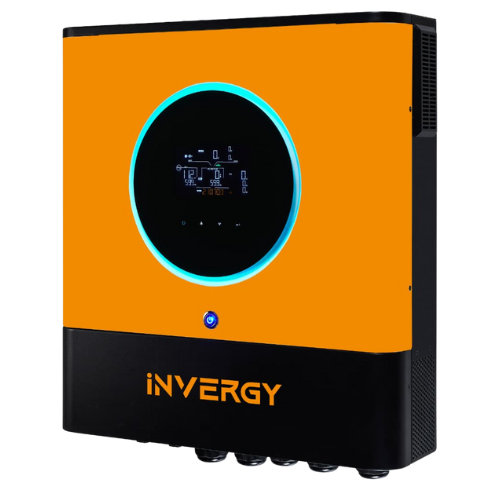

Off-Grid Inverter – MAX Series (Single Phase)

Models: INV-OGH-8.0K-48V / INV-OGH-10.0K-48V / INV-OGH-11K-48V

The MAX Series from Invergy is a powerful and intelligent off-grid solar inverter line designed for high-load residential and commercial applications. With output capacities up to 11 kW, it features smart energy management, robust build quality, and advanced monitoring for complete off-grid independence.

Key Features

• High Power Output: Available in 8kW, 10kW, and 11kW models

• Built-in WiFi & App Monitoring: Real-time tracking + OTA firmware updates

• 7” Touchscreen Display: Intuitive HMI for easy control and diagnostics

• Dual MPPT Inputs: Independent solar input tracking for better yield

• Battery-Independent Design: Can operate without batteries if needed

• RGB Status Ring: Visual system alerts and status updates

• Parallel Operation: Supports up to 6 units in parallel

• Anti-Dust Kit: Ensures long life in harsh environments

• External CT Sensor Support: Enables 100% self-consumption mode

• Built-in BMS Port: For smart lithium battery integration

• Built-in Meter Calibration: Ensures accurate system operation

General Specs

• Input Voltage: 230 VAC

• Selectable Range: 90–280 VAC (home appliances), 170–280 VAC (PCs)

• Output Waveform: Pure Sine Wave

• Transfer Time: 10 ms (PCs), 20 ms (Appliances)

• Efficiency (Peak): 93%

• Communication: USB, RS232, RS485, WiFi, Dry-contact

• Operating Temp: -10°C to 50°C

• Weight: 20 kg

• Size: 158.4 × 503.6 × 530.8 mm

• Compliance: CE certified

Available Models Table
