Three Phase Hybrid Inverter (LV)
SKU: INV-EU-3P-LV
Price range: ₹129,456.00 through ₹296,996.00
Inclusive of all taxes
EMI from ₹10,788/month
View plans
| 3 months | ₹43,152/mo |
| 6 months | ₹21,576/mo |
| 12 months | ₹10,788/mo |
Secured by Razorpay
Warranty Assured
Genuine Product
Pan-India Delivery
BIS Certified
Certified Excellence
DG Synchronization
Support Multiple Batteries Parallelly
Max. Charging/Discharging Current Of 350A
6 Time Periods For Battery Charging/Discharging
Max. 10 pcs Parallel For On-Gird & Off-Grid Operation
100% Unbalanced Output, Each Phase: Max. output Up To 50% Rated Power
Product Overview
Three-phase hybrid inverter for lead-acid or lithium-ion batteries (40-60V range), max charge/discharge current up to 350A, DG synchronization, and 100% unbalanced output (each phase up to 50% rated power).
Specs: 5kW to 20kW rated power | 40-60V (48V) battery voltage | supports multiple batteries in parallel.
Variants: INV(EU)-5kW-48V, INV(EU)-6kW-48V, INV(EU)-8kW-48V, INV(EU)-10kW-48V, INV(EU)-12kW-48V, INV(EU)-15kW-48V, INV(EU)-20kW-48V.
Pairs with the Energy Storage Solution Wall/Stack Mount (51.2V nominal, matched to the 40-60V battery range); multiple ESS units can be paralleled to meet higher charge current on larger models.
- Three-phase hybrid design for higher-capacity residential and light commercial use
- Max charge/discharge current up to 350A
- DG (diesel generator) synchronization support
- 100% unbalanced output, each phase handling up to 50% of rated power independently
- Supports multiple batteries connected in parallel for extended capacity
- 5kW to 20kW rated power across 7 model variants
- 40-60V (48V) battery voltage compatibility
Commercial Building
Large Home
Small Commercial Building
Can this three-phase LV hybrid feed unbalanced house loads?
Yes. It supports 100% unbalanced output: each phase can deliver up to 50% of rated power independently on a 3L+N+PE connection at 220/380V or 230/400V. That matters on Indian three-phase services where lighting, ACs and motors are not split evenly.
Why is charge current as high as 350A, and which battery does it use?
The 48V (40–60V) bus on 5–20kW models (INV(EU)-5kW through 20kW-48V) can push up to 350A into a large low-voltage bank. Pair multiple ESS 51.2V wall/stack units in parallel so the battery can absorb that current. Lead-acid or lithium is accepted with self-adapting BMS. PV side: up to 32,000W DC, 800V max, MPPT 160–650V, two trackers / two strings.
How many inverters can I parallel, and what else is built in?
Up to 10 units in parallel, on-grid or off-grid, with DG synchronization and six programmable charge/discharge windows. Rated AC goes to 20,000W (22,000VA apparent). Protection matches the single-phase LV series, plus three-phase grid monitoring. This is the residential/commercial 48V three-phase hybrid; 30kW+ sites should look at INV-EU-HV.
Residential Hybrid Series
Certifications & Compliance
IEC 62109-1/2 Compliant
International safety standards
IEC 61727 Certified
Reliable grid connectivity
BIS Certified
India compliance approved
CE & EMC Compliant
Electromagnetic compatibility
Related products
-
Hybrid-OGH Series
Price range: ₹33,976.00 through ₹52,509.00 Select options This product has multiple variants. The options may be chosen on the product page -

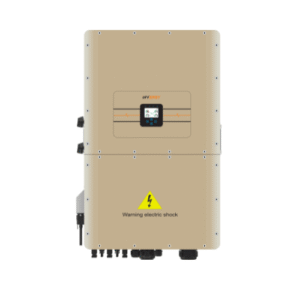

Three Phase Hybrid Inverter (HV)
Price range: ₹210,765.00 through ₹777,944.00 Select options This product has multiple variants. The options may be chosen on the product page -
Hybrid-OGH MAX Series
Price range: ₹112,661.00 through ₹125,062.00 Select options This product has multiple variants. The options may be chosen on the product page -

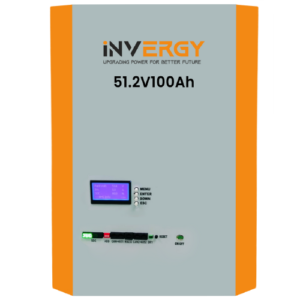

Energy Storage Solution (E.S.S.) – Wall Mount
