Three Phase Hybrid Inverter (HV)
SKU: INV-EU-HV
Price range: ₹210,765.00 through ₹777,944.00
Inclusive of all taxes
EMI from ₹17,564/month
View plans
| 3 months | ₹70,255/mo |
| 6 months | ₹35,128/mo |
| 12 months | ₹17,564/mo |
Secured by Razorpay
Warranty Assured
Genuine Product
Pan-India Delivery
BIS Certified
Certified Excellence
DG Synchronization
800 Battery Voltage Range
High Voltage Battery, Higher Efficiency
DC Couple and AC Couple To Retrofit Exiting Solar System
Max. 10 pcs Parallel For On-Grid & Off-Grid Operation; Support Multiple Batteries Parallelly
100% Unbalanced Output, Each Phase: Max. output Up To 50% Rated Power
Product Overview
High-voltage (160-1000V) Li-ion hybrid inverter with up to 98.70% max efficiency, DC and AC couple retrofit options, DG synchronization, and parallel capability up to 10 units with multi-battery support.
Specs: 30kW to 80kW rated power | 160-1000V battery voltage | 100% unbalanced output.
Variants: INV(EU)-30kW-HV, INV(EU)-40kW-HV, INV(EU)-50kW-HV, INV(EU)-60kW-HV, INV(EU)-80kW-HV.
Pairs with ESS C&I Series batteries (512V-665.6V rack voltage) for larger C&I sites.
- Commercial-grade high-voltage hybrid inverter for C&I-scale installations
- Up to 98.70% max efficiency for high-value energy conversion
- Both DC-couple and AC-couple retrofit options supported
- DG (diesel generator) synchronization for hybrid backup power
- Parallel operation supported for up to 10 units
- Multi-battery support for large-scale storage configurations
- 100% unbalanced output across all three phases
- 30kW to 80kW rated power across 5 model variants
- Wide 160-1000V battery voltage compatibility
C&I Facility
Commercial Building
Industrial Plant
Large C&I Ground/Rooftop Mount
When should I choose the HV hybrid instead of the 48V three-phase LV?
INV-EU-HV is the C&I series: 30 / 40 / 50 / 60 / 80kW with a 160–1000V lithium battery window (typically ~800V class). Higher DC bus voltage cuts current and cable losses versus 48V. Max efficiency is 98.70%. PV access goes up to 160kW (128kW DC input), 1000V max, MPPT 150–850V, and up to six MPPT strings on the 80kW (54A × 6). Off-grid peak can reach 2.5× rated power for 10 seconds.
Will a residential 51.2V ESS wall-mount battery work on this inverter?
No. Battery voltage must sit in the 160–1000V HV range. Pair it with ESS C&I racks (about 512–665.6V), not INV-ESS-512-WM or LFP-TB. Charge/discharge current is 50+50A to 80+80A depending on model — high voltage, not high current like the 350A LV units.
Can I retrofit an existing C&I solar plant and scale later?
Yes. DC-couple and AC-couple modes are both supported, along with DG synchronization. Up to 10 inverters and multiple HV batteries can run in parallel. Output can be 100% unbalanced (each phase up to 50% rated). The unit is IP65, wall-mounted, −40°C to 60°C, intelligent air cooling, RS485/CAN plus GPRS/Wi-Fi/Bluetooth/4G/LAN, and 5–10 year warranty by configuration.
Commercial & Industrial Series
Certifications & Compliance
IEC 62109-1/2 Compliant
International safety standards
IEC 61727 Certified
Reliable grid connectivity
BIS Certified
India compliance approved
CE & EMC Compliant
Electromagnetic compatibility
Related products
-

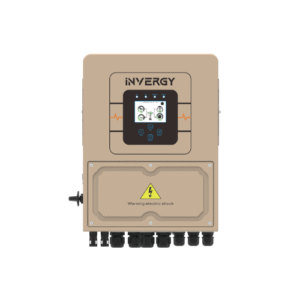

Single Phase Hybrid Inverter (LV)
Price range: ₹62,818.00 through ₹120,972.00 Select options This product has multiple variants. The options may be chosen on the product page -

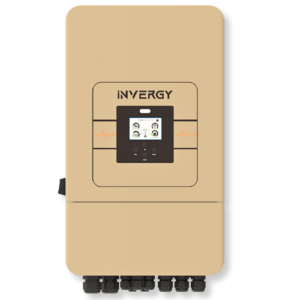

Three Phase Hybrid Inverter (LV)
