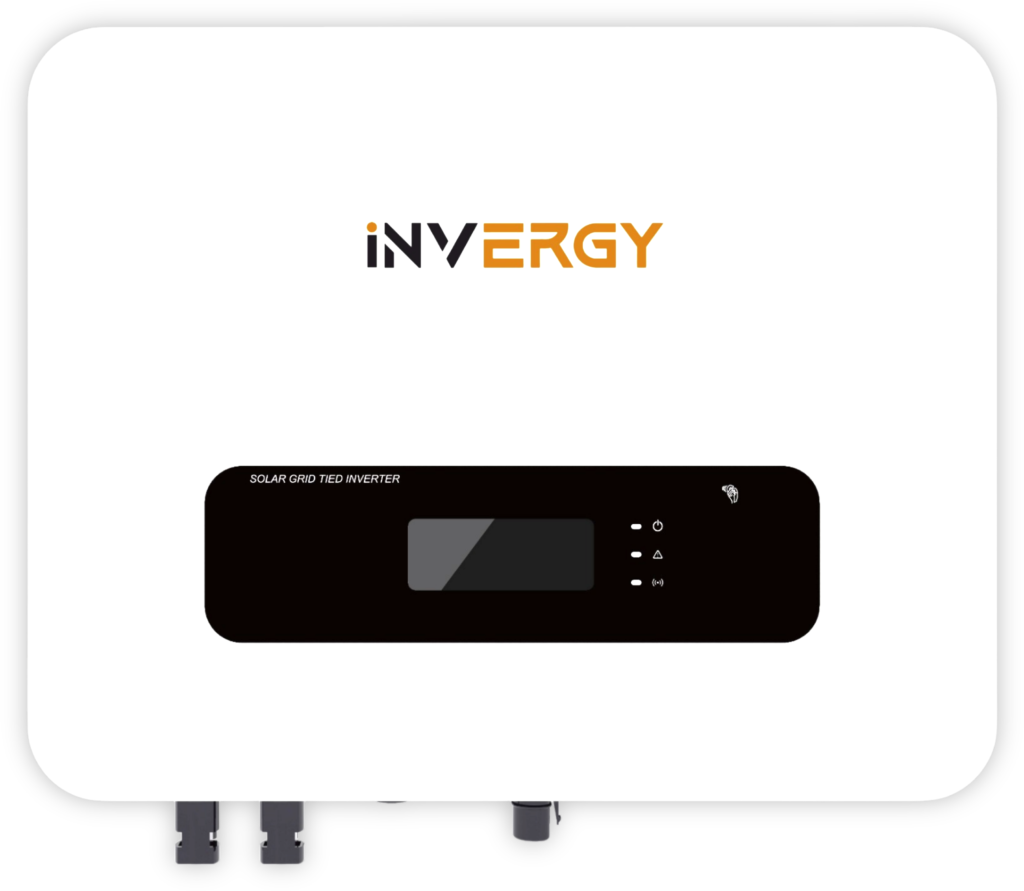

Single Phase Solar GTI
SKU: INV(EU)-EGT-01
Price range: ₹14,983.00 through ₹28,172.00
Inclusive of all taxes
EMI from ₹1,249/month
View plans
| 3 months | ₹4,995/mo |
| 6 months | ₹2,498/mo |
| 12 months | ₹1,249/mo |
Secured by Razorpay
Warranty Assured
Genuine Product
Pan-India Delivery
BIS Certified
Certified Excellence
IP 65 Rated
AFCI (Optional)
Dual Cooling System (Force + Natural)
Unique H6 Topology Prevents Leakage Current
Wide Range Of AC Grid Voltage Up To 290 Volts
Within 24 Hours Replacement, 365 Days Up-time
Product Overview
IP65-rated, transformerless single-phase grid-tie inverter with up to 97.60% max efficiency and 99.90% MPPT efficiency, using unique H6 topology to prevent leakage current, with AC grid voltage tolerance up to 290V.
Specs: 1.5kW to 6kW nominal AC output | 2250Wp to 7800Wp recommended PV input | IP65 rated | AFCI optional | dual cooling (forced + natural) | 8-year warranty.
Variants: INV(EU)-E-1.5GT-01, INV(EU)-E-2.0GT-01, INV(EU)-E-2.2GT-01, INV(EU)-E-3.0GT-01, INV(EU)-E-3.3GT-01, INV(EU)-E-3.6GT-01, INV(EU)-E-4.0GT-01, INV(EU)-E-4.2GT-01, INV(EU)-E-5GT-01, INV(EU)-E-6GT-01.
Grid-tied only, no battery input. For a battery-backed version at similar power, see the Single Phase Hybrid Inverter (LV) Series.
- Transformerless single-phase grid-tie design with unique H6 topology preventing leakage current
- Up to 97.60% max efficiency and 99.90% MPPT efficiency
- Wide AC grid voltage tolerance up to 290V
- IP65 rated enclosure for outdoor installation
- Optional AFCI (Arc Fault Circuit Interrupter) protection
- Dual cooling system: forced and natural convection
- 1.5kW to 6kW nominal AC output range across 10 model variants
- 2250Wp to 7800Wp recommended PV input
- Backed by an 8-year product warranty
Apartment/Balcony
Home
Small Office
Small Shop
Villa
Can the INV(EU)-EGT-01 series store energy in a battery?
No. This is a transformerless single-phase grid-tie inverter with no battery input. It exports PV to the 220/230V grid only. If you need backup or self-consumption storage at similar power, use the Single Phase Hybrid Inverter (LV) series (INV-EU-1P), which accepts 24V or 48V batteries and can AC-couple an existing solar array.
Why does this series use H6 topology and a wide AC voltage window?
The H6 topology is there to keep leakage current down on a transformerless design. The inverter also tolerates AC grid voltage up to 290V (about 140–300V), which helps on Indian feeders that run high. Max efficiency is 97.60% with 99.90% MPPT efficiency. AFCI is optional; cooling is dual (forced + natural). The unit is IP65 and carries an 8-year warranty.
What power ratings and PV array sizes are available?
Ten single-phase models cover 1.5kW to 6kW nominal AC: INV(EU)-E-1.5GT-01 through INV(EU)-E-6GT-01 (including 2.0, 2.2, 3.0, 3.3, 3.6, 4.0, 4.2 and 5kW). Recommended PV input ranges from 2250Wp on the smallest unit to 7800Wp on the 6kW. That oversizing window is for homes that want grid-export solar without a hybrid battery stack.
Residential Series
Certifications & Compliance
IEC 62109-1/2 Compliant
International safety standards
IEC 61727 Certified
Reliable grid connectivity
BIS Certified
India compliance approved
CE & EMC Compliant
Electromagnetic compatibility
Related products
-

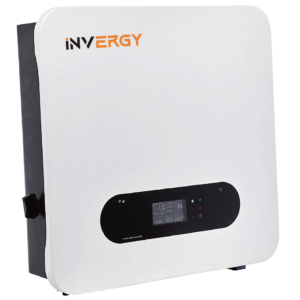

Three Phase Solar GTI
Price range: ₹38,817.00 through ₹70,348.00 Select options This product has multiple variants. The options may be chosen on the product page -
Single Phase Hybrid Inverter (LV)
Price range: ₹62,818.00 through ₹120,972.00 Select options This product has multiple variants. The options may be chosen on the product page
Compare with Similar Items
| Product | Single Phase Solar GTI | Single Phase Hybrid Inverter (LV) | Three Phase Solar GTI |
|---|---|---|---|
| Price | Price range: ₹14,983.00 through ₹28,172.00 | Price range: ₹62,818.00 through ₹120,972.00 | Price range: ₹38,817.00 through ₹70,348.00 |
| SKU | INV(EU)-EGT-01 | INV-EU-1P | INV-TP |
| Weight | — | — | — |
