LiFePO4 Battery (TB)
SKU: INV-LFP-TB
Price range: ₹2,228.00 through ₹52,459.00
Inclusive of all taxes
EMI from ₹186/month
View plans
| 3 months | ₹743/mo |
| 6 months | ₹372/mo |
| 12 months | ₹186/mo |
Secured by Razorpay
Warranty Assured
Genuine Product
Pan-India Delivery
BIS Certified
Certified Excellence
High Energy Density
Short Circuit Protection
Bluetooth Connectivity
Long Life Cycle
Product Overview
High energy density LiFePO4 batteries (12.8V or 25.6V nominal, 7-200Ah) with short-circuit protection, Bluetooth connectivity, and a rated 6000-cycle life, IP54 protection class.
Specs: 89.6Wh to 5120Wh rated output | 7Ah to 200Ah capacity | 12.8V or 25.6V voltage.
Variants: INV LFP 12007-TB, INV LFP 12012-TB, INV LFP 12018-TB, INV LFP 12080-TB, INV LFP 12100-TB, INV LFP 12150-TB, INV LFP 12200-TB, INV LFP 24100-TB, INV LFP 24200-TB.
Pairs with the Hybrid-OGH Series (12V/24V/48V) and Single/Three Phase Hybrid Inverter (LV) models (20-60V range) -- modules series-strung to match the inverter's DC bus voltage.
- High energy density LiFePO4 chemistry for long cycle life
- Rated for 6000 charge cycles, significantly outlasting lead-acid alternatives
- Built-in short-circuit protection for safe operation
- Bluetooth connectivity for wireless battery monitoring
- IP54 protection rating for indoor/semi-outdoor use
- Available in 12.8V and 25.6V nominal voltage options
- Capacity range from 7Ah to 200Ah across 9 model variants
- 89.6Wh to 5120Wh rated energy output
Cabin
Home
Remote Off-Grid Home
Villa
How do I match TB modules to a 12V, 24V or 48V inverter?
Cells are 12.8V or 25.6V nominal (7–200Ah, 89.6Wh–5120Wh). Series-string them to the inverter DC bus: one 12.8V module for INV-OGH-1.5KW-12V; two 12.8V (or one 25.6V) for 24V OGH / the 3kW INV-EU-1P; four 12.8V for a 48V OGH, OGH MAX, or 48V hybrid LV. Do not use TB packs on INV-EU-HV (160–1000V).
What cycle life, protection, and monitoring do the TB batteries have?
Rated life is 6000 cycles. The pack is IP54 with short-circuit protection and Bluetooth for status/diagnostics. Variants run from INV LFP 12007-TB (12V 7Ah) up through 12200-TB, plus 24100-TB and 24200-TB. They are building-block modules for small hybrid/off-grid systems, not a drop-in high-current 51.2V wall cabinet.
Should I pick TB modules or the 5.12kWh ESS wall-mount?
Use TB when you need 12.8/25.6V blocks, odd Ah sizes, or to series-build a 12/24/48V bus for Hybrid-OGH and compact hybrids. Use INV-ESS-512-WM when you want a 51.2V / 100Ah / 5.12kWh wall cabinet, 50A continuous, active balancing, 3.5-inch LCD, and up to 16 units in parallel on 48V LV hybrids or OGH MAX.
Storage Series
Certifications & Compliance
UN38.3 Certified
Transport safety standard
IEC 62619 Compliant
Battery safety standard
BIS Certified
India compliance approved
CE & RoHS Compliant
Hazardous substance compliance
Related products
-
Single Phase Hybrid Inverter (LV)
Price range: ₹62,818.00 through ₹120,972.00 Select options This product has multiple variants. The options may be chosen on the product page -
Three Phase Hybrid Inverter (LV)
Price range: ₹129,456.00 through ₹296,996.00 Select options This product has multiple variants. The options may be chosen on the product page -
Hybrid-OGH MAX Series
Price range: ₹112,661.00 through ₹125,062.00 Select options This product has multiple variants. The options may be chosen on the product page -

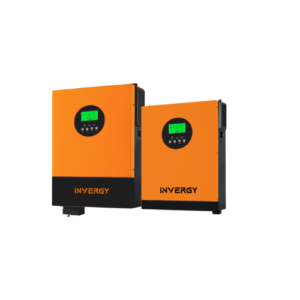

Hybrid-OGH Series
