Energy Storage Solution (E.S.S.) - Wall Mount
SKU: INV-ESS-512-WM
₹75,000.00
Inclusive of all taxes
EMI from ₹6,250/month
View plans
| 3 months | ₹25,000/mo |
| 6 months | ₹12,500/mo |
| 12 months | ₹6,250/mo |
Secured by Razorpay
100 in stock
Warranty Assured
Genuine Product
Pan-India Delivery
BIS Certified
Certified Excellence
Cell-level Voltage, Current & Temperature Monitoring
Supports Parallel Connection Up To 16 Units
IP54-Rated Enclosure For Outdoor Protection
RS485, CAN & RS232 Communication
Built-in 3.5 Inch LCD Screen For Real-time Monitoring
Active Cell Balancing - Optimized Performance & Longer Battery Life
Complete Safety Protection - Over-temp, Overcharge, Over-discharge & Short-circuit
Bluetooth Connectivity
Product Overview
51.2V/100Ah rechargeable Li-ion (LFP prismatic) wall-mount battery with active cell balancing, IP54 outdoor rating, 5-year warranty, and parallel connection up to 16 units for capacity expansion.
Specs: 5.12kWh rated energy per unit, scalable to 16 units in parallel | 51.2V voltage | 100Ah capacity | built-in 3.5-inch LCD.
Variant: INV ESS 5.12kWh Wall Mount.
Pairs with Single/Three Phase Hybrid Inverter (LV) models (40-60V range, matching the ESS's 40-58.4V operating voltage) and the Hybrid-OGH MAX Series (48V).
- Wall-mountable Li-ion (LFP prismatic cell) battery for space-efficient installation
- Active cell balancing technology for consistent performance and longevity
- IP54 outdoor durability rating
- Parallel connection supported for up to 16 units, scaling to 81.92kWh total capacity
- Built-in 3.5-inch LCD display for at-a-glance status monitoring
- Multiple communication protocols: Bluetooth, RS485, CAN, and RS232
- 5-year product warranty
- 5.12kWh rated energy capacity per unit
- 51.2V voltage, 100Ah capacity per unit
Home
Large Home
Villa
How much energy is in one wall-mount unit, and how far can I expand?
One INV ESS 5.12kWh Wall Mount is 51.2V / 100Ah LFP (prismatic), 5.12kWh rated. Parallel up to 16 units on the same bus for about 82kWh. Operating voltage is 40–58.4V (±0.5V), 0.5C rate, 80% DoD, 50A max continuous charge and 50A discharge. Active cell balancing and cell-level BMS (voltage, current, temperature, SOC) are included.
Which Invergy inverters is this battery compatible with?
It matches 48V hybrids whose battery window is 40–60V: Single Phase Hybrid LV (3.6–8kW-48V), Three Phase Hybrid LV (all 5–20kW-48V models), and Hybrid-OGH MAX (48V). It is not for INV-EU-HV (160–1000V) and is a poor fit for 12V/24V OGH models. Comms are RS485, CAN, RS232 and Bluetooth, plus a 3.5-inch LCD.
Can I mount it outdoors, and what is the warranty?
The enclosure is IP54 for indoor or sheltered outdoor use (utility rooms, garages, external walls). Charge temperature 0°C–50°C, discharge −20°C–60°C. Warranty is 5 years at 0.5C, 80% DoD, 25°C. If you need a floor-standing tower instead of a wall cabinet, the stack-mount ESS uses the same 51.2V / 100Ah cell foundation.
Storage Series
Certifications & Compliance
UN38.3 Certified
Transport safety standard
IEC 62619 Compliant
Battery safety standard
BIS Certified
India compliance approved
CE & RoHS Compliant
Hazardous substance compliance
Related products
-
Single Phase Hybrid Inverter (LV)
Price range: ₹62,818.00 through ₹120,972.00 Select options This product has multiple variants. The options may be chosen on the product page -

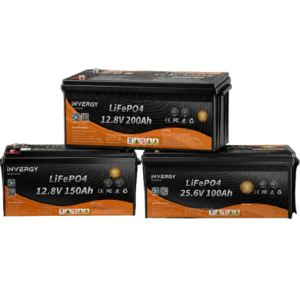

LiFePO4 Battery (TB)
Price range: ₹2,228.00 through ₹52,459.00 Select options This product has multiple variants. The options may be chosen on the product page -

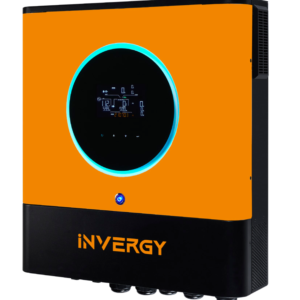

Hybrid-OGH MAX Series
